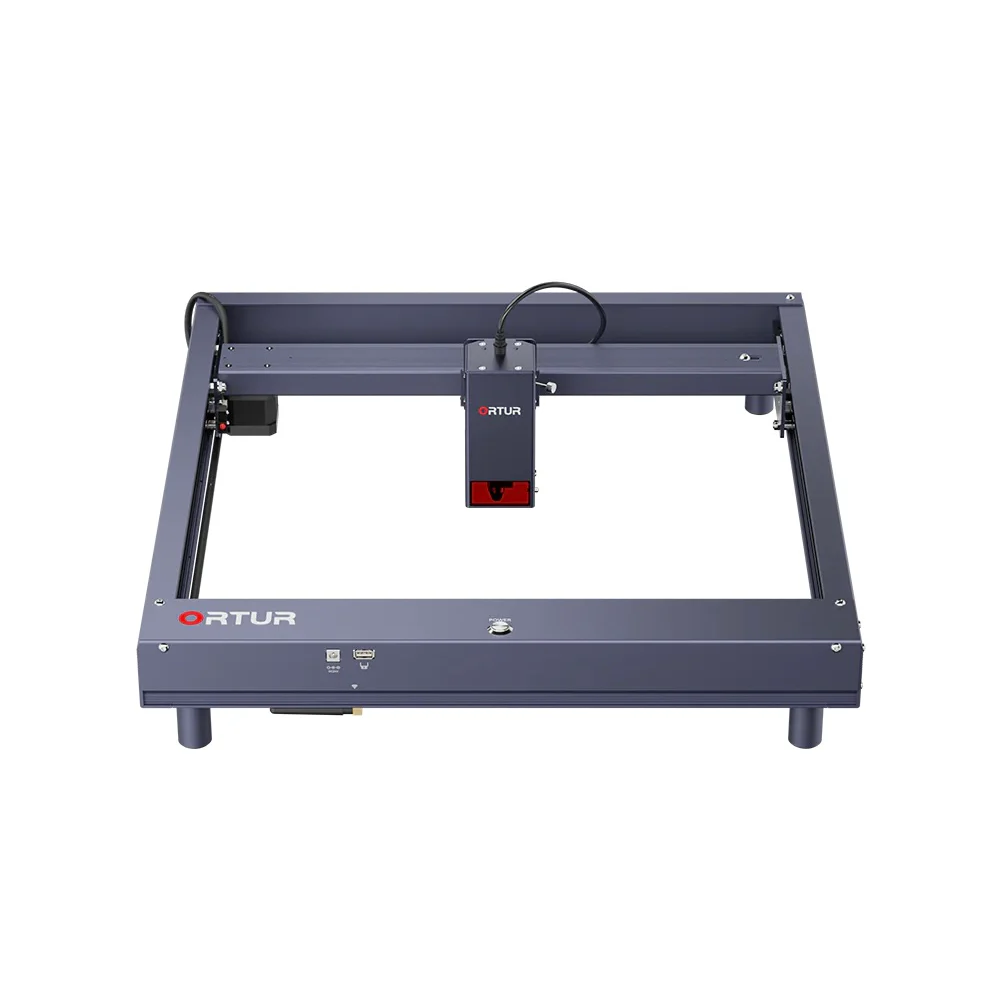

Ortur H10 Support

Yes. The Ortur H10 is designed as a beginner-friendly laser engraver with a pre-assembled structure, allowing users to start engraving right out of the box. It also supports a mobile app and simple software like LaserGRBL, making setup and operation easy even for first-time users.

The Ortur H10 can engrave a wide range of materials including wood, leather, glass, coated metal, acrylic, and more. It can cut materials like plywood and black acrylic, but cannot cut transparent acrylic. Pure metals cannot be engraved directly, but coated or oxidized metals can be marked.

The Ortur H10 features a true 20W optical output created by combining multiple diode lasers. This allows it to cut materials like 8mm plywood or 12mm pine in a single pass under optimal conditions.

The machine offers engraving precision up to 0.01 mm, enabling highly detailed designs, grayscale images, and even color engraving on stainless steel using parameter adjustments.

No. The Ortur H10 comes largely pre-assembled, allowing users to start working almost immediately after unboxing, which significantly reduces setup complexity compared to DIY kits.

The Ortur H10 supports multiple software options including LaserGRBL (free), LightBurn (paid), and Ortur’s own mobile app. It is compatible with Windows, macOS, and Linux depending on the software used.

Yes. With a compatible rotary attachment (such as Ortur Y-axis Rotary Chuck), the H10 can engrave cylindrical objects like tumblers, bottles, and rings.

The Ortur H10 includes multiple safety systems such as an emergency stop button, tilt and motion detection, laser exposure control, voltage and current monitoring, and active position protection to ensure safe operation.

The engraving area of the Ortur H10 is approximately 300 × 300 mm, making it suitable for desktop use while still offering enough space for most DIY and small business projects.

Yes. The Ortur H10 supports multiple compatible laser modules, allowing users to upgrade or switch modules depending on their engraving or cutting needs. The H10 is compatible with LU3-20A/B, LU2-10A, LU2-4SF/LF.

Yes. The Ortur H10 20W comes with a built-in air assist system (with a free air pump), which helps reduce burn marks and improves cutting quality by blowing away debris during operation.

Yes, but with limitations. It can engrave glass surfaces (not cut them) and can mark coated or treated metals. For better results on glass, users typically apply a coating such as paint or thermal paper before engraving.

The Ortur H10 stands out with its flat X-axis design for improved stability, true 20W output, built-in air assist, high precision, and beginner-friendly setup, making it suitable for both hobbyists and small business users.

Yes. With its high power, precision, and compatibility with various materials, the Ortur H10 is suitable for small-scale production such as custom gifts, signage, and personalized products.

Yes, the H10 supports Z-Height Adjuster. The Z-axis can be adjusted by modifying the limit sheet metal parts.

Air Pump – Reduces burn marks, keeps lenses clean.
Laser Engraving Platform – Prevents damage to your work surface.
YRC1.0 Rotary Roller – Ideal fortumblers, rings, and cylindrical objects.
Enclosure 2.0 + Smoke Purifier – Ensures safe indoor use with clean air.
ORP1.0 Raiser – Elevates the laser fortaller engraving projects.

LU3-20A Uses COS technology for superior cutting performance.
LU3-20B Uses optical compression, ideal for thicker materials.
