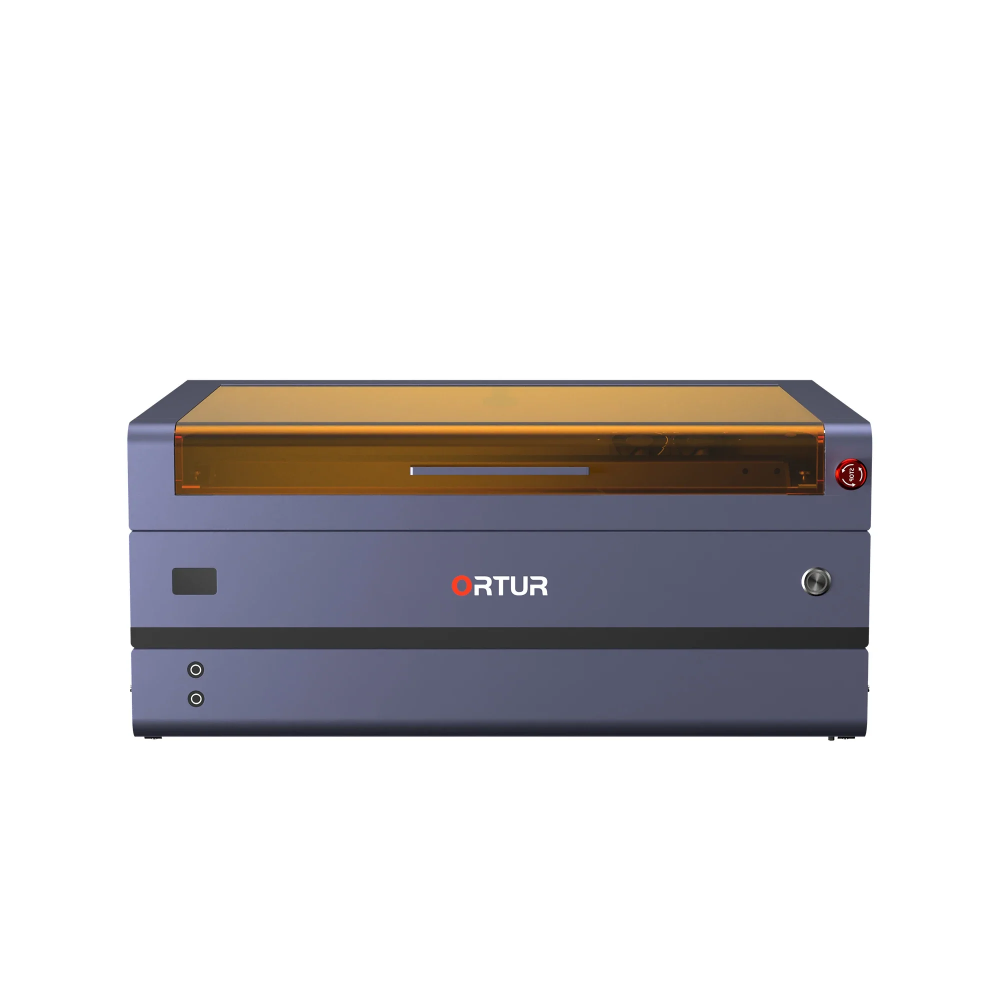

Ortur H20 Support

The Ortur H20 can engrave and cut a wide range of materials including wood, leather, acrylic, paper, coated metals, and some plastics. With the optional 2W infrared laser module, it can also engrave certain metals and plastic materials.

Yes, the Ortur H20 is a fully enclosed Class 1 laser engraver. This means it is designed with multiple safety protections, including a protective cover, lid safety lock, and emergency stop, making it safer for home or workshop use.

The autofocus feature depends on the laser module:
The 40W module supports autofocus
The 2W, 10W, and 20W modules require manual focus

The working area varies by module:
10W / 20W: 420 × 300 mm
40W: 410 × 275 mm
2W IR: 420 × 275 mm

The Ortur H20 supports multiple software options, including LightBurn, LaserGRBL, Ortur’s own mobile app.
It is compatible with Windows, macOS, Linux, Android, and iOS systems.

Yes. The Ortur H20 is designed with beginner-friendly features such as:

Auto-edge detection
Visual positioning via smart camera
App-based control
Pre-configured safety features

These help reduce setup complexity and improve usability for new users.

The Ortur H20 stands out due to its modular three-layer design, which allows:

Flexible configurations (open frame to fully enclosed)
Adjustable engraving height
Integrated exhaust and lifting system

This modularity provides more versatility than typical fixed-structure engravers.

Yes. Although it features an enclosed design and built-in exhaust system, proper ventilation is still recommended when engraving or cutting materials to remove smoke and fumes effectively.

Yes, but with limitations:
Standard diode modules can engrave coated or anodized metals.
The 2W infrared module enables engraving on metals and plastics.

No. The laser modules for the Ortur H20 are custom-designed and are not compatible with other Ortur models or third-party engravers.

The Ortur H20 has a maximum engraving speed of up to 20,000 mm/min, depending on the material and settings used.

Yes. It includes an ultra-HD smart camera with visual positioning and auto-edge detection, helping improve engraving accuracy and alignment.

Yes. With high power options (up to 40W), precision features, and support for batch production workflows, the H20 is suitable for small businesses, Etsy sellers, and custom product makers.

The machine supports Wi-Fi, USB, TF card, Mobile app control.
This allows flexible workflow setups for different users.

Yes. It features a three-layer quick assembly design, making setup faster and more flexible compared to traditional engravers.

The H20 supports:

• Ortur YRR3.0 (Rotary Roller)
• YRC1.0 (Rotary Chuck)
• OSP1.0 (Smoke Purifier)
• OAP1.0 (Air Pump)

The 2W infrared laser module is ideal for engraving metals, acrylic, and plastic. If you work with jewelry or acrylic-based projects, it’s a valuable addition to your setup.
