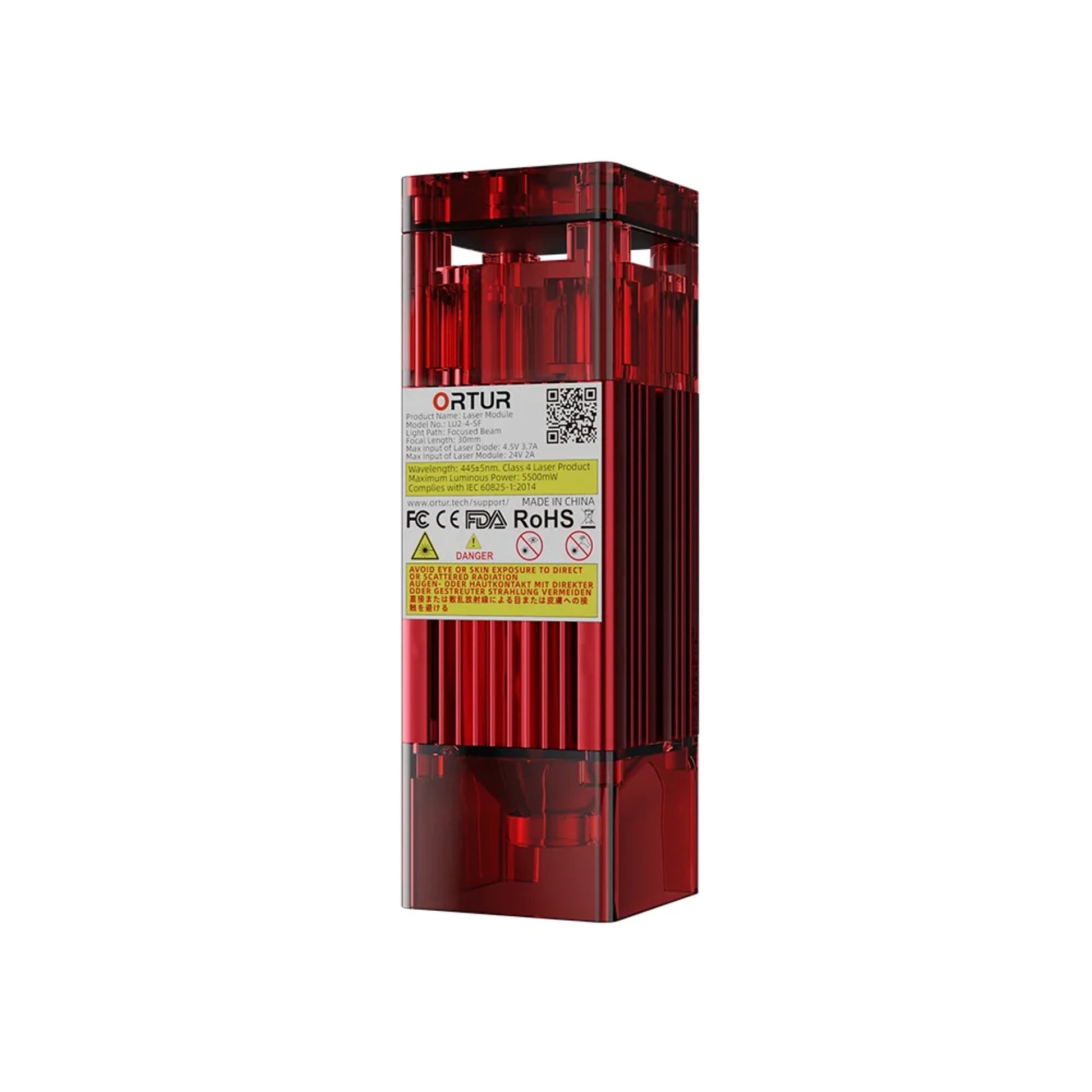

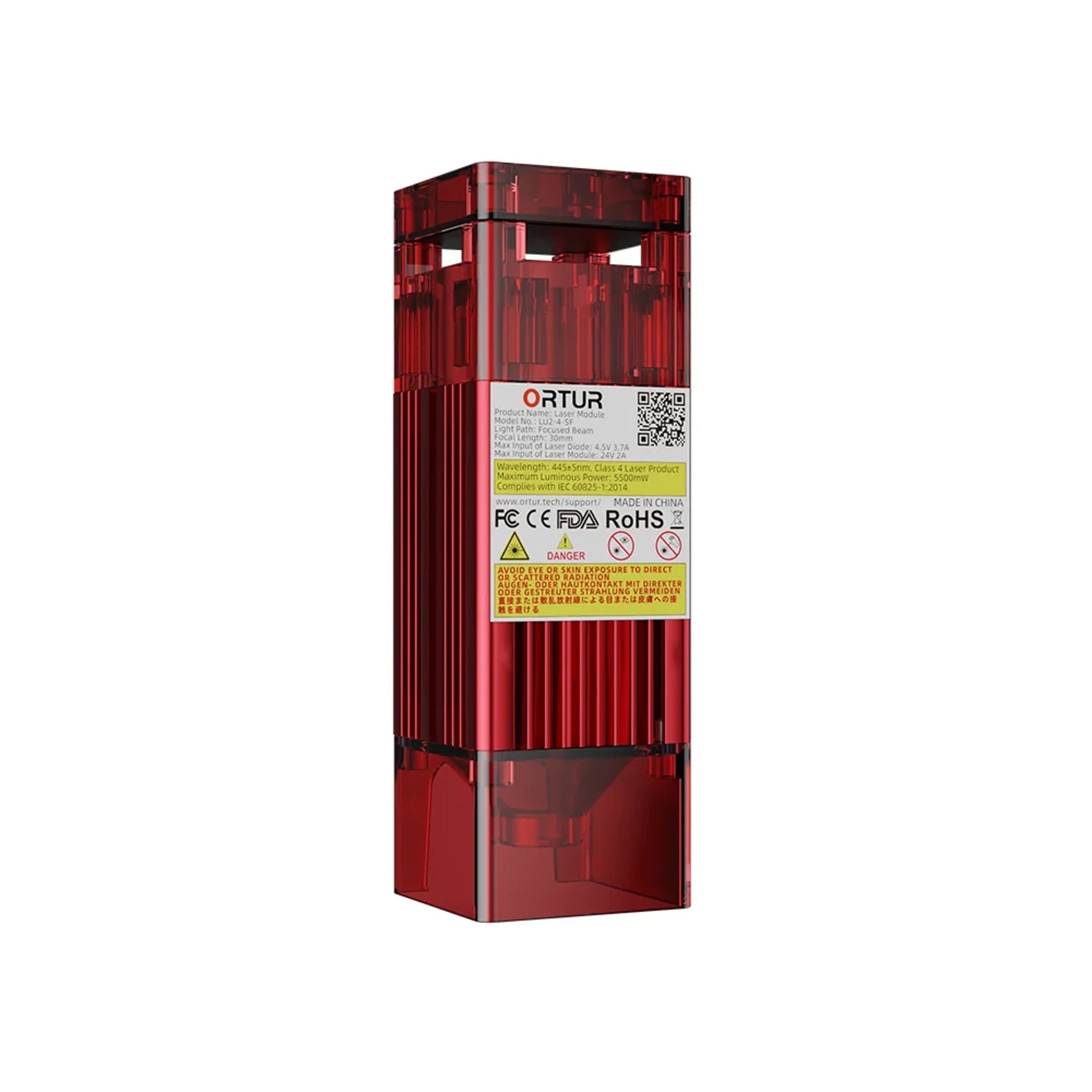

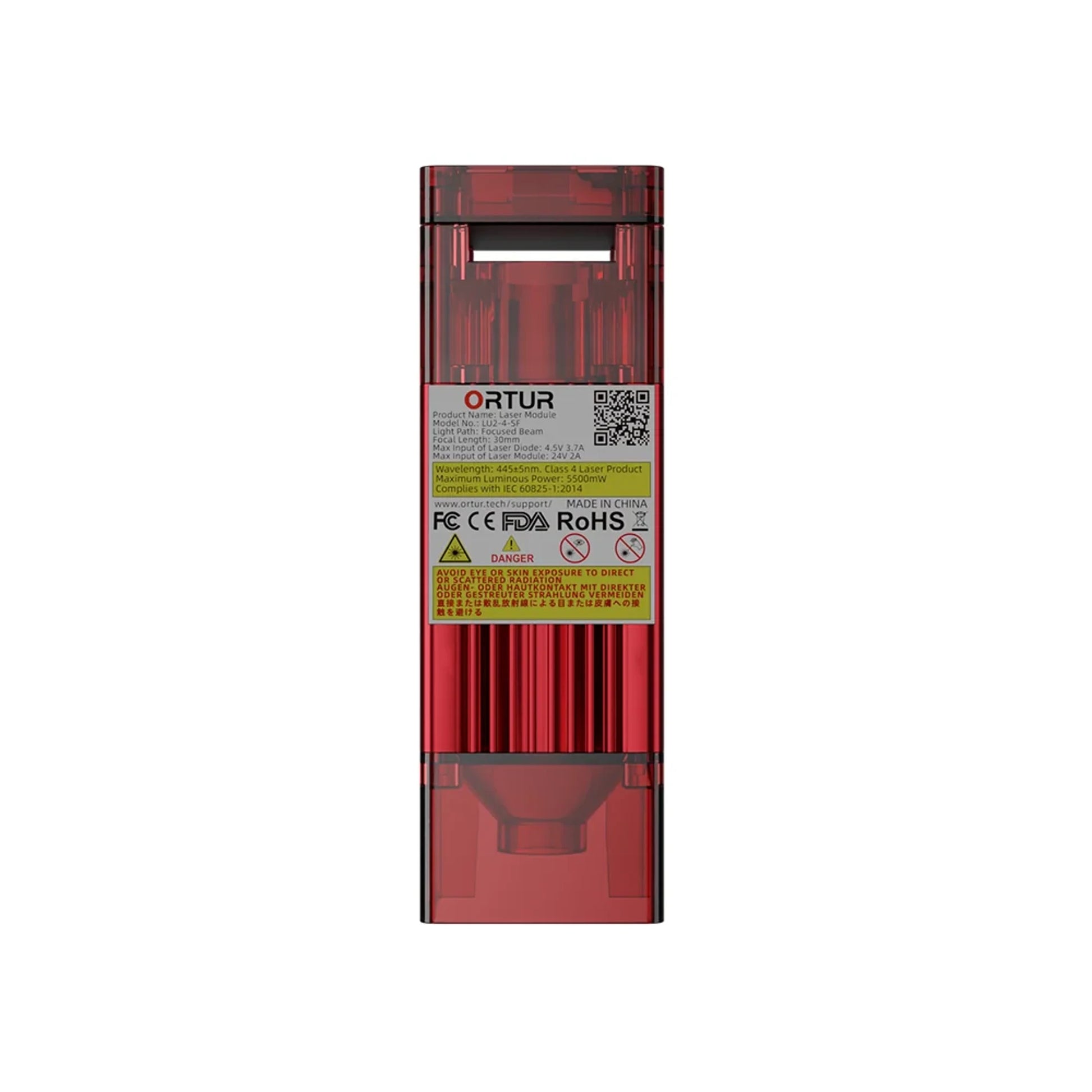

Ortur 5W Short-Focus Laser Module LU2-4 SF

Ortur 5W Short-Focus Laser Module LU2-4 SF

€119,00 EUR
€169,00 EUR €119,00 EUR
-€50,00 Sold out
Shipping calculated at checkout.
  • Wide Compatibility: The LU2-4 SF 5.5W Laser Module is fully compatible with Ortur Laser Master 2 Pro S2, Ortur Laser Master 2 S2, as well as other Ortur laser engravers supporting 24V/2A.
  • Quick Shipping: All orders are shipped within 48 hours (excluding weekends), ensuring fast delivery to keep your projects on track.
  • ⚡ Don't worry about the plug! We will automatically ship the correct power adapter according to your shipping address. If you have a specific plug type request, feel free to leave a note at checkout or contact us.
View full details

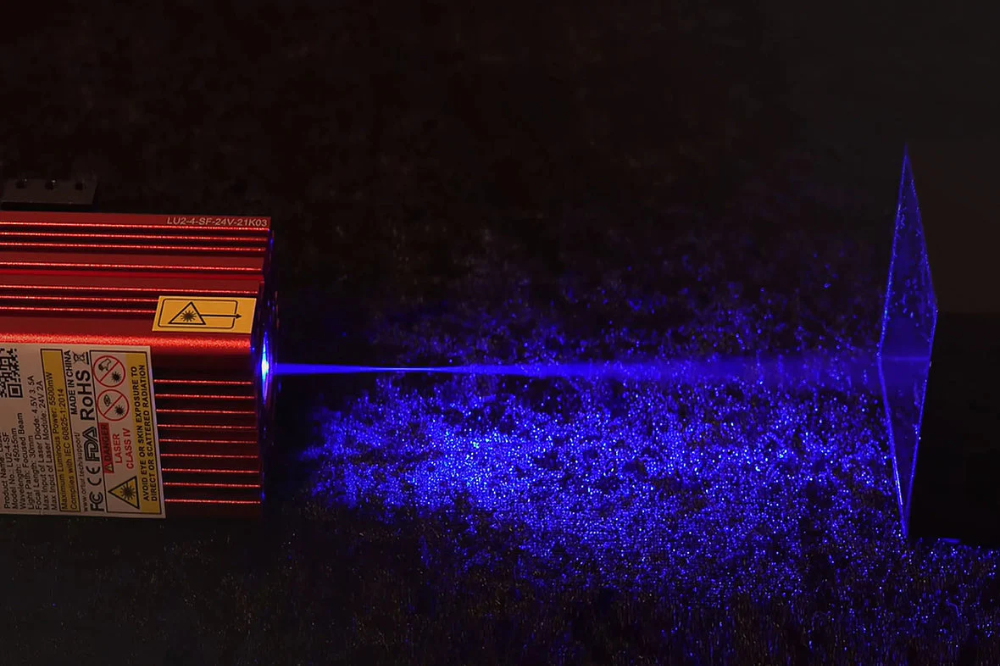

 Fine Engraving

The LU2-4 LF laser module has a spot size of 0.12 x 0.15 mm, allowing for higher engraving accuracy and compatibility with a wide range of materials.

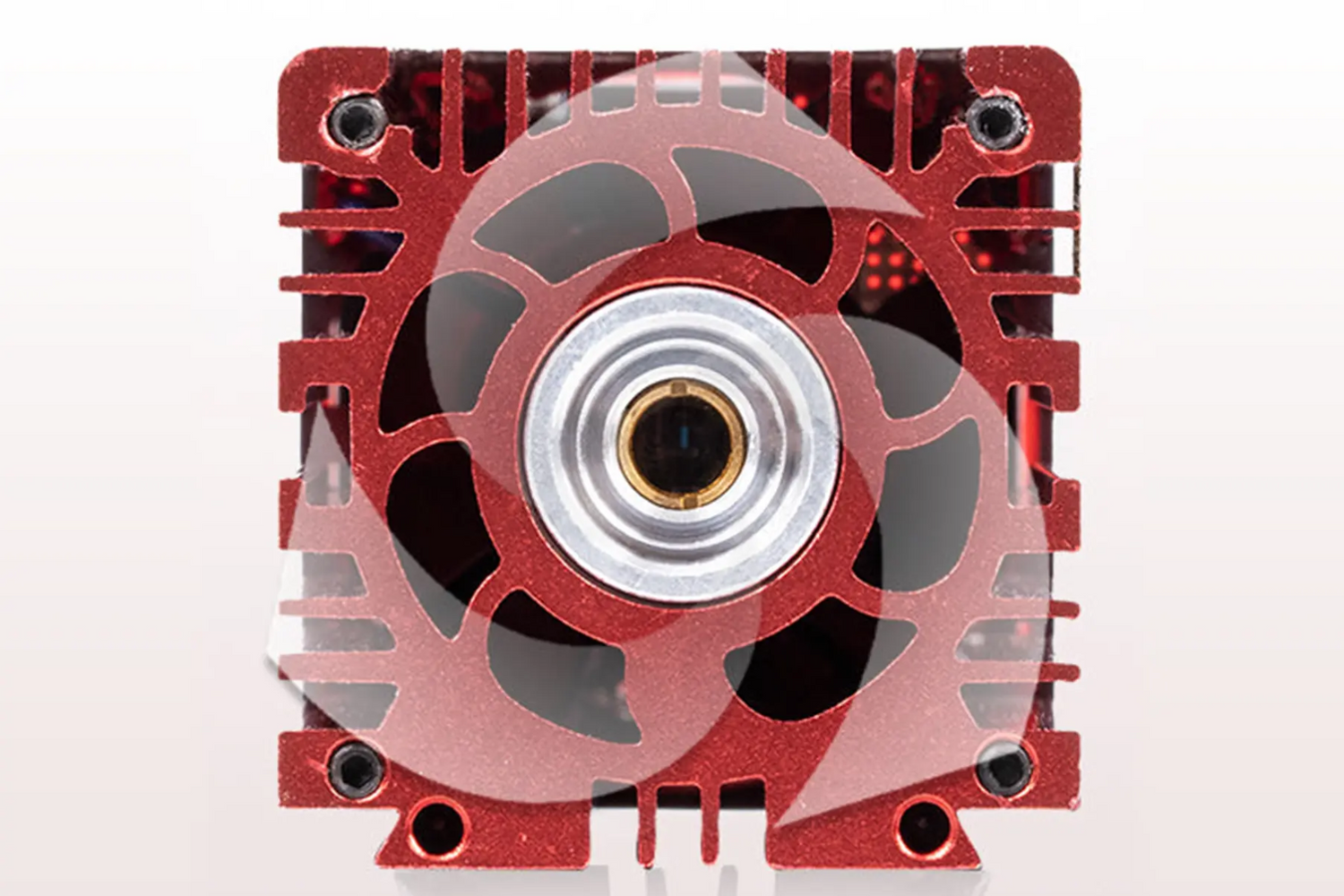

Aluminum Heatsink

The laser module features an aluminum housing and heat sink to prevent overheating during extended use, ensuring long-lasting performance.

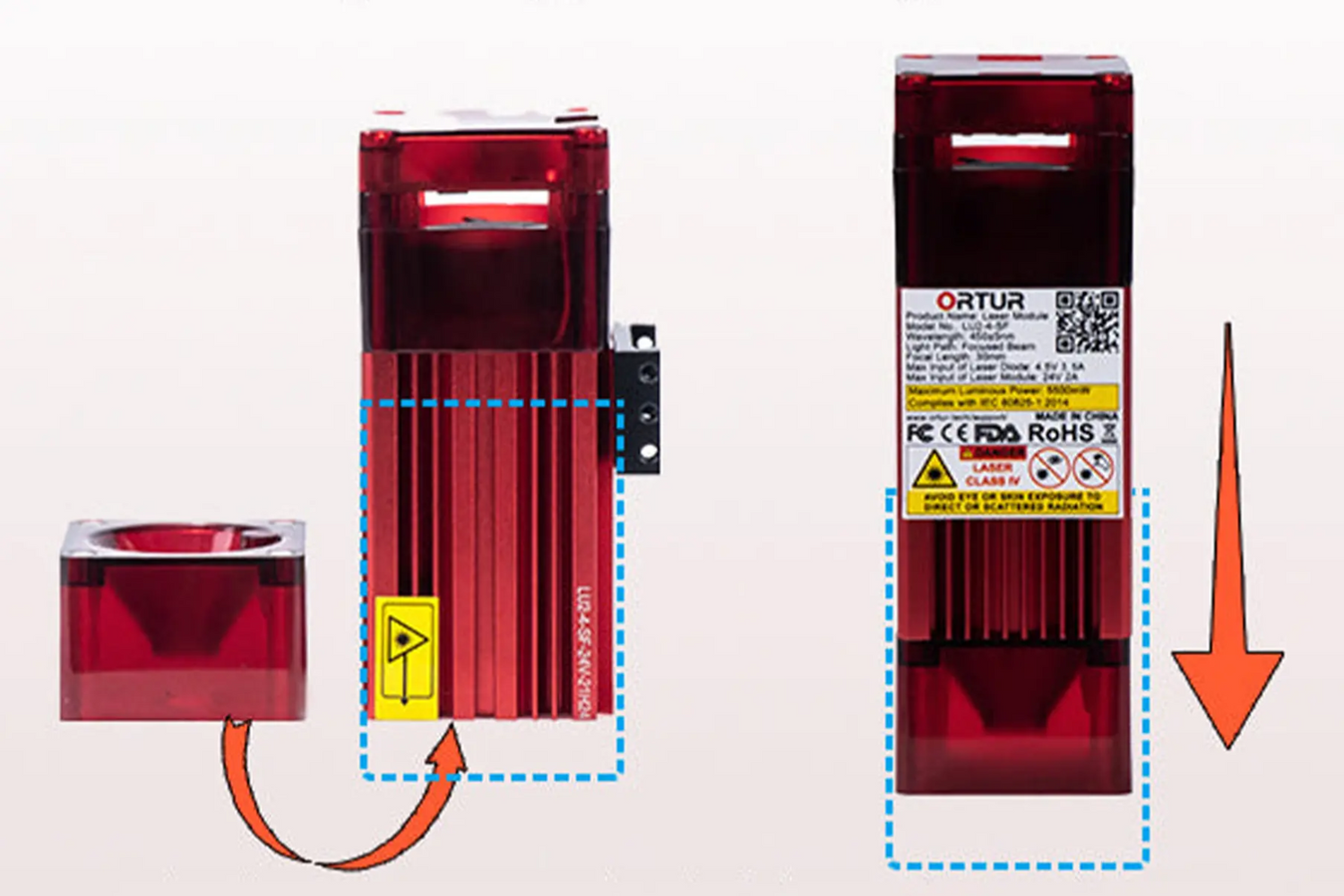

Laser Filter Shield

The built-in laser shield filters out harmful laser light for safer and more comfortable engraving. You can easily adjust the shield’s position by loosening the thumbscrews on both sides.

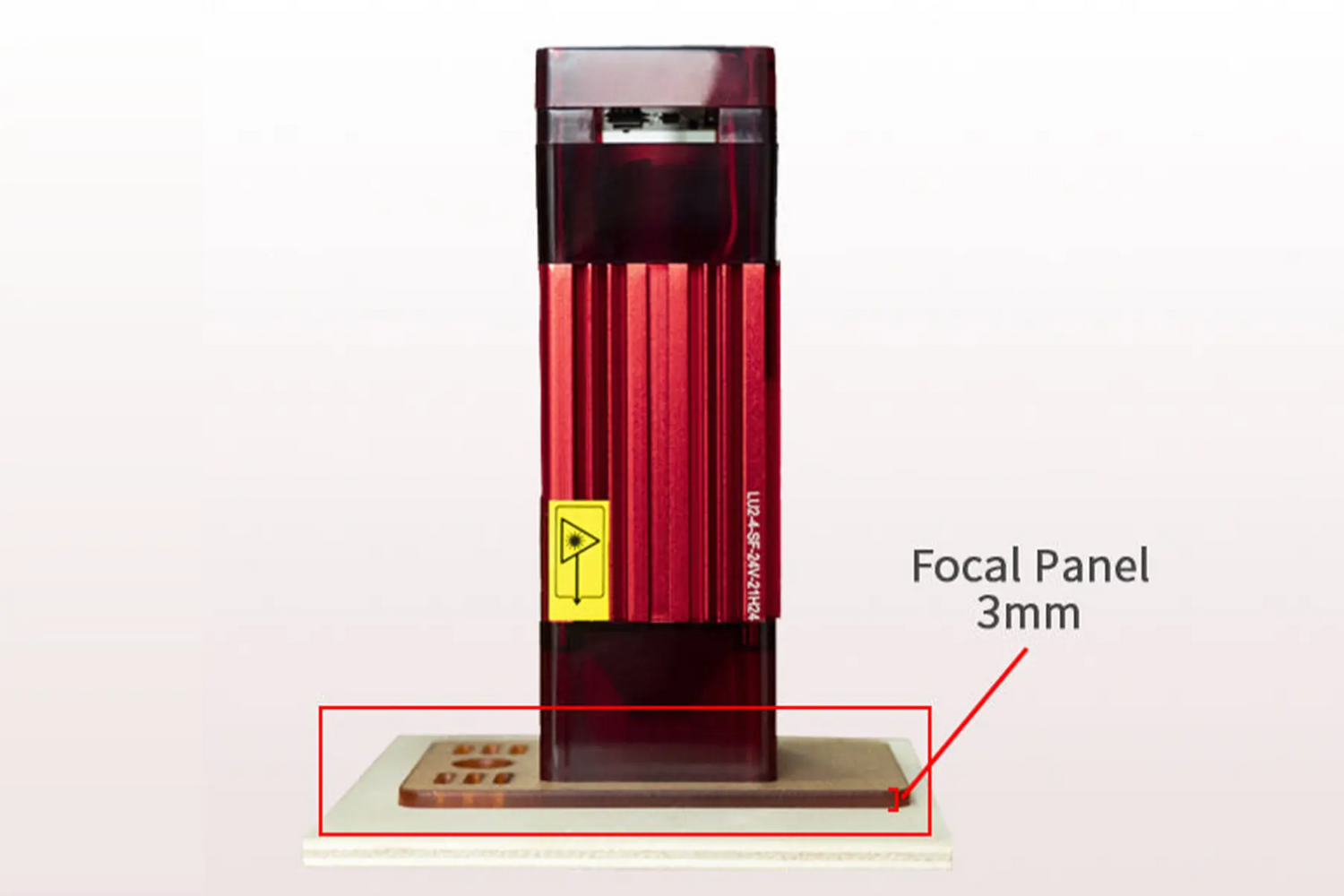

Focal Gauge

This is a fixed-focus laser module. Please adjust the height of the laser module before use to ensure proper focusing for optimal results.

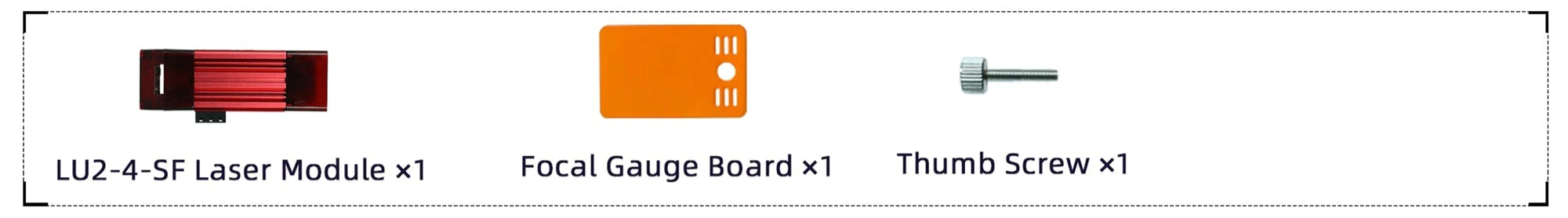

Package List

Specifications

Optical Power

5.5W

Spot Size

0.12 x 0.15 mm

Focal Length

30 mm

Focusing Mode

Manual

Wavelength

450 ± 5 nm

Power Input

24V / 2A

Laser Technology

Optical Compression

Exhaust Nozzle

❌ Not Included

Z-Height Adjuster Compatibility

✔ Compatible

Lifetime

>10,000 hours

Cleaning Frequency

Every 30 hours

Cleaning Method

Wipe the lens gently with a cotton swab dampened with alcohol, then let it air dry.
